◆ Product:JY-IV Oil-spill static protector (used for bottom loading)

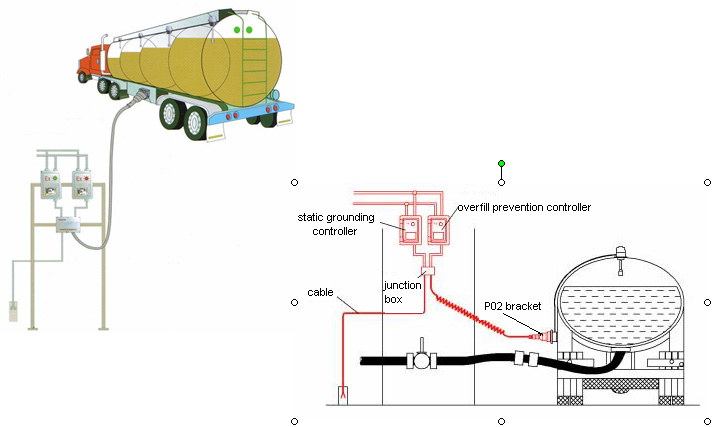

      It is suitable for the bottom loading system for liquid chemical products. It monitors the liquid level as well as the static grounding and has the function of static discharging and overfill prevention.

◆Advantages

    1. Measure up API international standard.
   2. Static conducing and overfill prevention controller are independent to each other, which males a clear alarm indication.
   3. Humanized design of grounding bolt makes it comfortable to handle.
   4. Bracket is provided which makes installation simple.

◆Parameters

1. Explosion proof class: Exdia II BT4
2. Power: 220VAC±10%
3. Output signal: 8A, 30VDC or 8A, 250VAC
4. Working current: < 45mA
5. Response time: < 2s
6. Detection resistance: < 60Ω
