LED

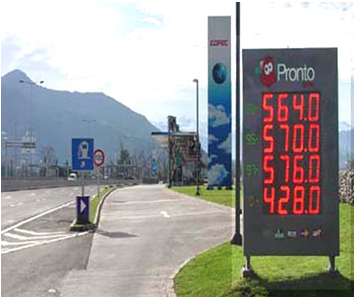

LED electronic placard series adopt LED technology. The board can display information clearly, bright, large viewing distance. Installing bright LED electronic display in your station will not only public the newest information of oil price, but also attract the attention of customers. You can adjust the price by the computer, remote operation or button operation.
Feature:
High brightness, long life
Low power consumption
High reliability, defense class
LED display(I)

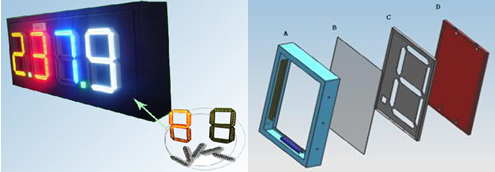

Component of each digit unit:(A): Frame (Aluminium);
(B): Clarity PC sheet;
(C): Display panel(Aluminium);
(D): Back cover (Aluminium).
Technical parameters:
|
Digit Height |
Cabinet size, H*W*D |
Weight, 1bs |
Power, (w) |
LED Color |
|
8’’ |
9.75’’x30’’x2’’ |
7 |
35 |
Red, Yellow, Green |
|
10’’ |
11.75x32x2 |
10 |
37 |
Red, Yellow, Green |
|
12’’ |
13.75x38.75x2 |
12 |
40 |
Red, Yellow, Green |
|
12’’ |
13.75x38.75x2 |
12 |
40 |
Red, Yellow, Green |
|
15’’ |
16.5x49.5x2 |
15 |
50 |
Red, Yellow, Green |
|
18’’ |
19.875x57.25x2 |
21 |
65 |
Red, Yellow, Green |
|
24’’ |
26.25x64x2 |
25 |
75 |
Red, Yellow, Green |
|
32’’ |
34.25x74x2.5 |
25 |
85 |
Red, Yellow, Green |

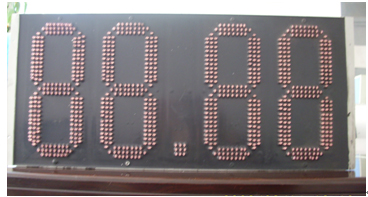

LED display(II):
Technical parameter:
|
Size, L*W*H, cm |
58.1*25.6*2.5 |
|
Size of digit(8), cm |
22*9 |
|
Width between digit, cm |
3 |
|
LED number, pcs/one figure |
207 |
|
LED specification |
φ５ |
|
Color |
Red, Green, Blue, White,Yellow |
|
Control mode(I) |
Asynchronous Control by computer( control distance: 1200m(optical fiber) |
|
Control mode(II) |
Remote Control( control distance: 5-8m) |
LED Display (III)--- LED Digital Board
It is used in service station, LPG station or convenience stores to inform fuel price and improve service quality.
Parameters：
|

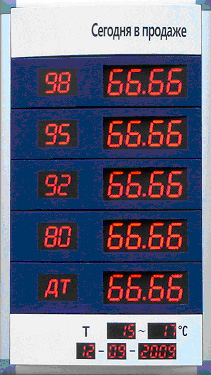

Vertical Movable LED Digital Board |
|
No. of Fuel Products |
5 or 4 |
|
No. of Digits for Each Fuel Product |
4 or 3.5 |
|
Dynamic Shining Band |
for option |
|
Temperature Display |
automatically inductive |
|
Control Methods |
control button, computer or remote controller |
|
Digital Height in Price Part |
70mm |
|
Digital Height in Temperature and Date Part |
35mm |
|
Wall Hanging Movable LED Digital Board |
|
No. of Fuel Products |
5 |
|
No. of Digits for Each Fuel Product |
4 or 3.5 |
|
Dynamic Shining Band |
no |
|
Temperature Display |
automatically inductive |
|
Control Methods |
control button,computer or remote controller |
|
Digital Height in Fuel Product Part |
55mm |
|
Digital Height in Price Part |
70mm |
|
Digital Height in Temperature and Date Part |
35mm |
Features：
Auto recognition and adjustment of brightness during day and night.
Selectable layer switch.
Attract more attention with the direction indication.
Each layer is an individual unit ,convenient for installation.
Constant drive ,morestable in performance.
Multimedia control for user’s options.
Parameters：
|

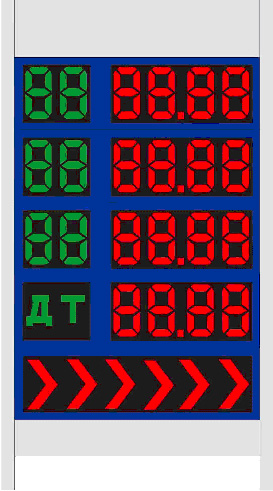

VerticalLED Digital Board |
|
No. of Fuel Products |
4 or according to user is request |
|
No. of Digits for Each Fuel Product |
4 ,3.5 or according to user request |
|
Dynamic Shining Band |
For option |
|
Control Methods |
control button,computer or remote controller |
|
Digital Height in Fuel Product Part |
30cm or according to user request |
|
Digital Height in Price Part |
30cm or according to user request |
|
Color of LED part |
Red, green, blue |
|
Note: We can design and produce LED display according to the user request completely. | |
|
|
 |
|
|
