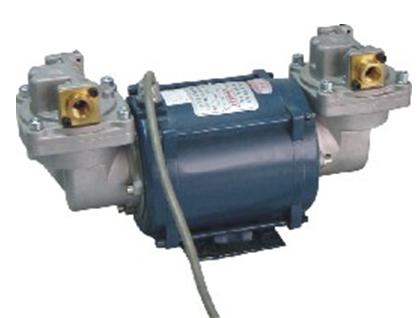

Steady function, after installing this pump, the flow rate of the nozzle is 40-45L/min
One motor with one pump and one motor with two pumps are available.
The start and stop of the pump are controlled by the solenoid valve, so it is reliable.
Low noise, durable.
The body is made of aluminum with small volume, and light.
Transmission shaft connected with the motor directly, easy for installing.
The power dissipation for one pump is just 120W
Technical data
|
Inlet negative pressure |
0.04～0.06MPa |
|
Outlet flow rate |
90～100L/min |
|
Power |
380V AC |
|
Start current |
1.2～1.8A |
|
Working current |
0.67A |
|
Ambient temperature |
-40℃～60℃ |
|
Motor power |
250W |
|
Connection thread |
G3/8″ |
|
Ex-proof |
Ex dⅡAT3 |
