PRODUCT -->

◆Manhole Cover with Oil Gas Reclaiming Valve


Length of circle(mm)：560 / 580
Hole pitch and hole numbers：530x24x10  /  540x24x10
Material：Al.alloy
Working pressure (mpa)：210-340


◆Submarine Valve


Specification：4'
Hole pitch of Round flange: 190x8x14 / 150x8x14
Material: Al.alloy
Working Pressure(mpa): 0.2

◆Hose Nipple of Unloading Valve


Specification：4'
Ventage Junction:   3" / 2.5"
Material: Al.alloy
Working Pressure(mpa): 0.2

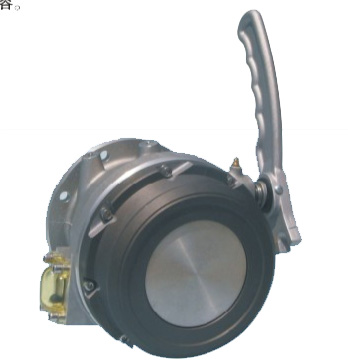

◆JAYO-01 API  Bottom Loading Adaptor


Body: Al.alloy            CAM:  Aluminum bronze
Handle: Bronze         Seals: Fluorocarbon&Buna-N
API adaptor end: Hard-coated alumimum
Poppet & Shaft and latch plate: Stainless steel
Standard: Meet TTMA Standard

◆JAYO LJQ-01Tight-Seal Adaptor and  JAYO-01 Tight Seal Fill Cap


Elbow Size: 4"          Riser Thread: BSP/NPT4"
Material: Bronze        Cap&Link: Pa66
Pins: Stainless steel     Gasket: Buna-N

 ◆JAYO-SYWG Series Delivery Elbow


Light weight cast aluminum; Fits all 4" top seal adaptors;
Protective base shield;With sight glass which allows the
operator to see whether product is flowing.
SYWG-504 #         4"Male cam and groove
SYWG-704 #         4"Male –BSPT thread
SYWG-604 #         4"Male –NPT thread
