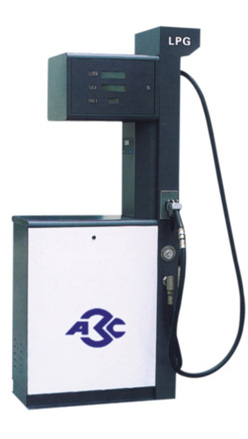

◇Model：JDK50L
◇Voltage: ~220V, 50Hz
◇Flow range: 13-65L/min
◇Accuracy: ±0.5%
◇Display Resolution: 0.01 liter
◇Display Board
Contents: Dispense Amount
Total Dispense: 1~999999 liters
Dispense Amount: 0.01~9999.99liters
Unit Price: 0.01~0.99/liter
Totalize: 1-999.999 liters
Automatic Temperature makes up: ~40℃~45℃
Pressure Gauge Measuring Range: 0~2.5MPa
◇Connecting methods
Liquid Pipeline: Flange, Screw Thread
Gas Pipeline : Flange, Screw Thread
◇Pressure Testing
Intensity Test: 2.0MPa
Air Tightness Test: 1.8MPa
Solenoid Valve: AC 220V Ex proof
Flow Rate: 75L/min
Safety Return Valve: 1.6MPa
Hose: Internal Diameter 13mm (Length 0.7M +5.2M)
