LED
LED电子标牌系列采用了LED技术。电路板可以显示信息，清晰，明亮，。安装明亮的LED电子显示屏在你的加油站，不仅公开最新信息的成品油价格，也吸引了顾客的注意力。由计算机，远程操作或按键操作，您可以调整价格。
产品特点：高亮度，长寿命；低功耗；可靠性高，防御类
LED 显示(I)

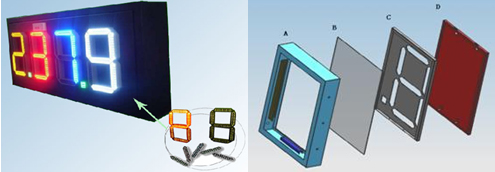

组件的每一个数字单位：
（A）：框架（铝）;
（B）：透明PC板;
（C）：显示面板（铝）;
（D）：封底（铝）。
|
Digit Height |
Cabinet size, H*W*D |
Weight, 1bs |
Power, (w) |
LED Color |
|
8’’ |
9.75’’x30’’x2’’ |
7 |
35 |
Red, Yellow, Green |
|
10’’ |
11.75x32x2 |
10 |
37 |
Red, Yellow, Green |
|
12’’ |
13.75x38.75x2 |
12 |
40 |
Red, Yellow, Green |
|
12’’ |
13.75x38.75x2 |
12 |
40 |
Red, Yellow, Green |
|
15’’ |
16.5x49.5x2 |
15 |
50 |
Red, Yellow, Green |
|
18’’ |
19.875x57.25x2 |
21 |
65 |
Red, Yellow, Green |
|
24’’ |
26.25x64x2 |
25 |
75 |
Red, Yellow, Green |
|
32’’ |
34.25x74x2.5 |
25 |
85 |
Red, Yellow, Green |

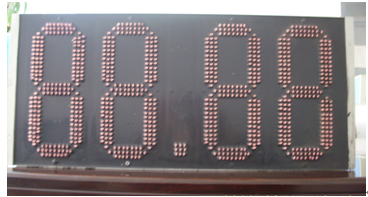

LED显示（II）

|
Size, L*W*H, cm |
58.1*25.6*2.5 |
|
Size of digit(8), cm |
22*9 |
|
Width between digit, cm |
3 |
|
LED number, pcs/one figure |
207 |
|
LED specification |
φ５ |
|
Color |
Red, Green, Blue, White,Yellow |
|
Control mode(I) |
Asynchronous Control by computer( control distance: 1200m(optical fiber) |
|
Control mode(II) |
Remote Control( control distance: 5-8m) |

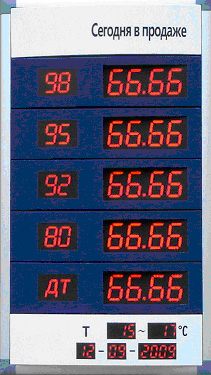

LED显示（III）

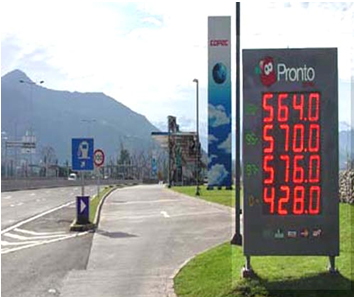

它是用在服务站，液化石油气站或便利店告知燃料价格和提高服务质量。
Parameters：
|
Vertical Movable LED Digital Board |
|
No. of Fuel Products |
5 or 4 |
|
No. of Digits for Each Fuel Product |
4 or 3.5 |
|
Dynamic Shining Band |
for option |
|
Temperature Display |
automatically inductive |
|
Control Methods |
control button, computer or remote controller |
|
Digital Height in Price Part |
70mm |
|
Digital Height in Temperature and Date Part |
35mm |
|
Wall Hanging Movable LED Digital Board |
|
No. of Fuel Products |
5 |
|
No. of Digits for Each Fuel Product |
4 or 3.5 |
|
Dynamic Shining Band |
no |
|
Temperature Display |
automatically inductive |
|
Control Methods |
control button,computer or remote controller |
|
Digital Height in Fuel Product Part |
55mm |
|
Digital Height in Price Part |
70mm |
|
Digital Height in Temperature and Date Part |
35mm |

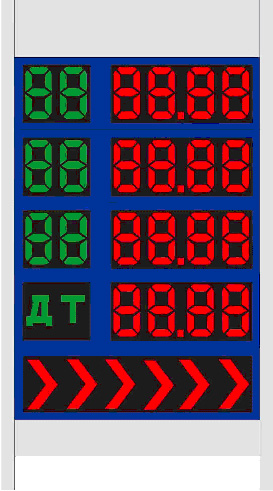

自动识别和调整白天和夜间的亮度。可选层交换机，吸引更多人关注的方向指示，每一层是一个单独的单元，安装方便。
Parameters：
|
VerticalLED Digital Board |
|
No. of Fuel Products |
4 or according to user is request |
|
No. of Digits for Each Fuel Product |
4 ,3.5 or according to user request |
|
Dynamic Shining Band |
For option |
|
Control Methods |
control button,computer or remote controller |
|
Digital Height in Fuel Product Part |
30cm or according to user request |
|
Digital Height in Price Part |
30cm or according to user request |
|
Color of LED part |
Red, green, blue |
|
Note: We can design and produce LED display according to the user request completely. |
|
|
|
 |
|
|
